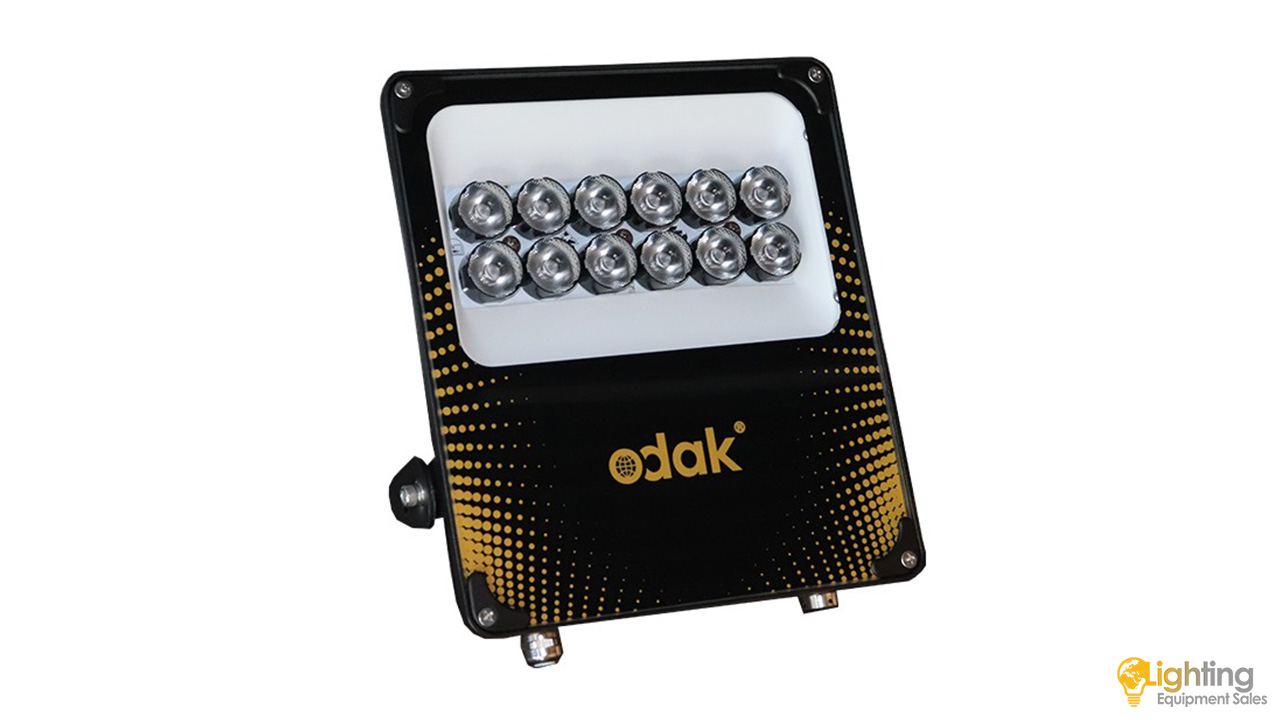

Infrared LED Projector is an LED-based lighting device designed to support imaging systems. It emits energy-efficient infrared light optimized for night vision applications, providing illumination at wavelengths suitable for low-light environments.
The projector housing is built to withstand harsh environmental conditions, featuring IP66-rated protection against dust and water and IK08-rated impact resistance.
It offers a narrow 8° beam angle specifically tailored for speed detection, license plate recognition (ANPR/ALPR), and other road monitoring systems. Additionally, a variety of beam angles are available—8°, 17°, 20°, 25°, 30°, 45°, 60°, and 120°—to suit different applications. Depending on the use case, the projector provides infrared illumination ranging from 20 meters to 200 meters.
Specifications
- Power: 26W
- Input Voltage: 200-240 V AC 50/60 Hz
- Power Factor: >0,95
- Wavelength: 850 nm
- Infrared Emission: 10 W
- Light Angle: 8°, 17°, 25°, 40°, 45°, 60°, 90°, 110°
- IP Protection Class: IP 66
- Dimensions: 255x200x65 mm
- Weight: 1.5 kg
- Warranty Period: 3 Years
- Body: Aluminum Injection
- Color Options: RAL 9004
- Front Cover Tempered Glass
- Lens: PMMA
- Light Source: LED
- Impact Resistance: IK 08
- Total Harmonic Distortion: <%20
