Plastic Housing Modular LED Floodlight

03 June 2021
462 views

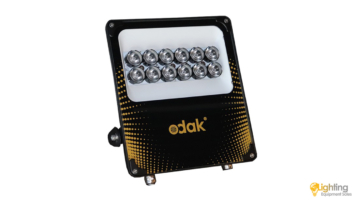

Plastic Housing Modular LED Floodlight

Luxtra DOB LED Floodlight is a modular lighting fixture designed to be used in outdoor lighting. Each floodlight module has 20W of power, and multiple modules can be combined to achieve 1000W of power. It has high efficiency LEDs and an integrated LED driver in DOB (Driver on board) architecture. Floodlight housing is made of a special thermoplastic material with high thermal conductivity. Its innovative design optimally dissipates heat and ensures safe operation of the LEDs.

Specifications

  • Power: 20 W
  • Input Voltage: 175-265 V AC 50/60 Hz
  • Power Factor: >0,9
  • Luminious Flux: 2250 lm
  • Color Temperature:  2700 K, 4000K, 6500 K
  • CRI: >70
  • LED Chips: Cree
  • Dimming: Yes (Phase Cut)
  • IP Protection: IP65
  • Weight: 800 g
  • Dimensions: 235x170x55 mm
  • Operating Temperature: -30°/+50°C
  • Warranty: 1 Year + 1 Year Lighting Eq. Sales
